Blauberg Reneo-Fit D 100-E S14

Suspended heat and energy recovery air handling units
  • Maximum airflow: 130 m3/h
  • Sound pressure level LpA at 3 m: 32 dB(A)
  • Heat exchanger type: Counter flow
  • Extract filter: G4 / Coarse > 60 %
  • Supply filter: G4 / Coarse > 60 % (optional: F7 / ePM1 60 %)
  • Sound insulation
  • Motor type: EC
  • Enthalpy heat exchanger
  • Control: Wired control panel
  • Casing material: EPP
  • Humidity sensor: Optional
  • CO2 sensor: Optional
Unit of measurement Reneo-Fit D 100-E S14
Connected air duct size mm 100/125
Phases - 1
Minimum supply voltage V 230
Maximum supply voltage V 230
Power supply frequency Hz 50/60
Rated power W 45
Unit current A 0.34
Maximum airflow m3/h 130
Sound pressure level LpA at 3 m dB(A) 32
Heat recovery efficiency, max % 88
Heat exchanger type - Counter flow
Heat exchanger material - Enthalpy
Weight kg 8
Extract filter - G4 / Coarse > 60 %
Supply filter - G4 / Coarse > 60 % (optional: F7 / ePM1 60 %)
Transported air temperature (max) °С 40
Transported air temperature (min) °С -23
Ambient air temperature min °С 1
Ambient air temperature max °С 40
Ambient air humidity max % 60
Ingress protection rating - IP22
Ingress protection rating of the drive - IP44
Trademark Blauberg
Model Reneo-Fit D 100-E S14
Specific energy consumption (SEC) (kWh/(m2/a)) Cold Average Warm
78.6 A+ 41.1 A 16.9 E
Type of ventilation unit Bidirectional
Type of drive installed Variable speed
Type of heat recovery system Recuperative
Thermal efficiency of heat recovery (%) 80
Maximum flow rate (m3/h) 90
Electric power input (W) 37
Reference flow rate (m3/s) 0.018
Reference pressure difference (Pa) 50
Specific power input (SPI) (W/(m3/h)) 0.254
Control typology Local demand control
Maximum internal leakage rates (%) 2.8
Maximum external leakage rates (%) 3
Sound power level (dB(A)) 45
Declared typology RVU BVU
The annual electricity consumption (AEC) (kWh/a) Cold Average Warm
716.4 179.4 134.4
The annual heating saved (AHS) (kWh/a) Cold Average Warm
8776 4486 2029
Datasheet
Reneo-Fit D 100 S14 - data sheet
851 Kb
Manual
Reneo-Fit D 100 S14 - user's manual (B224EN-01)
2.54 Mb
BIM/CAD models
Reneo-Fit D 100 S14
1.05 Mb
Reneo-Fit D 100-E S14 - image 1
816 Kb

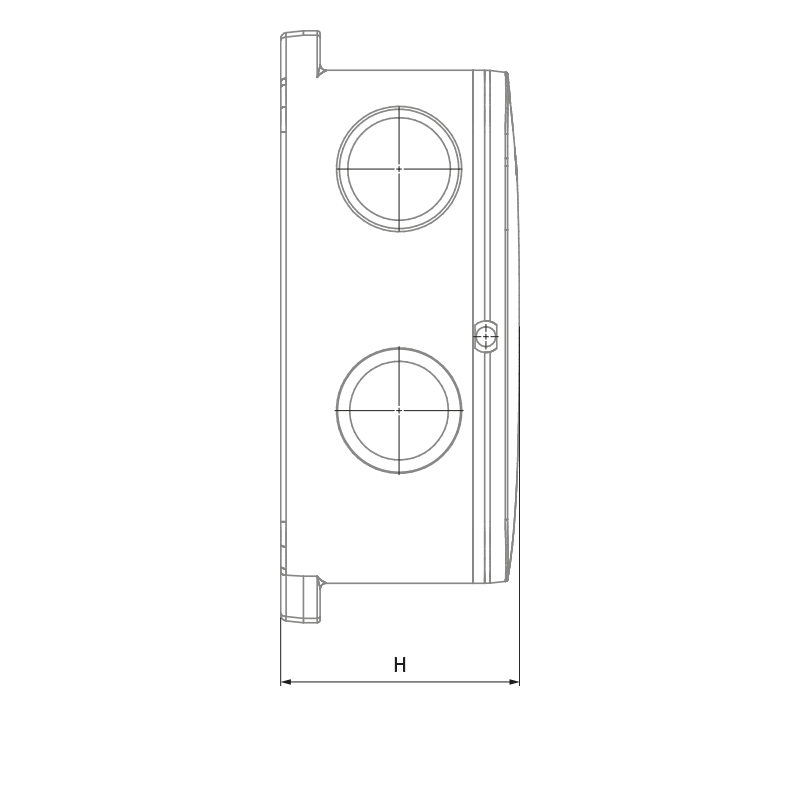

Vents Reneo-Fit D 100-E S14 - Dimensions
H L L1 W W1
242 530 630 520 600
